FIXED IND 360NH 43A 0.76MOHM SMD

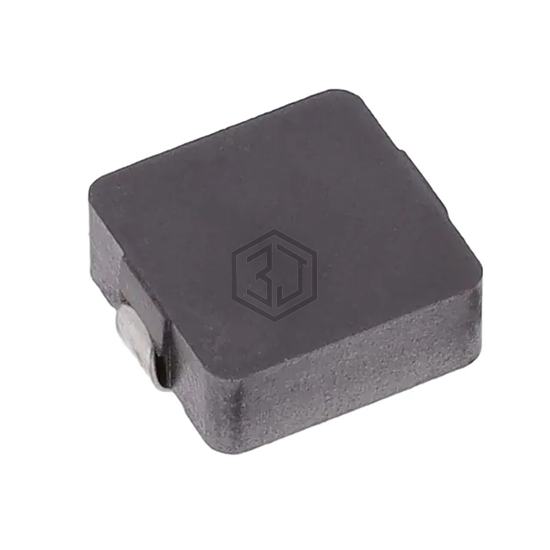

CMLE104T-R36MS0R765 is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 360NH 43A 0.76MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 43 A.
In Stock: 820
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 360 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 43 A |
| Current - Saturation (Isat) | 45A |
| Shielding | Shielded |
| DC Resistance (DCR) | 0.76mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.439" L x 0.394" W (11.15mm x 10.00mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
Submit your RFQ for CMLE104T-R36MS0R765 and get a quote within 24 hours.
