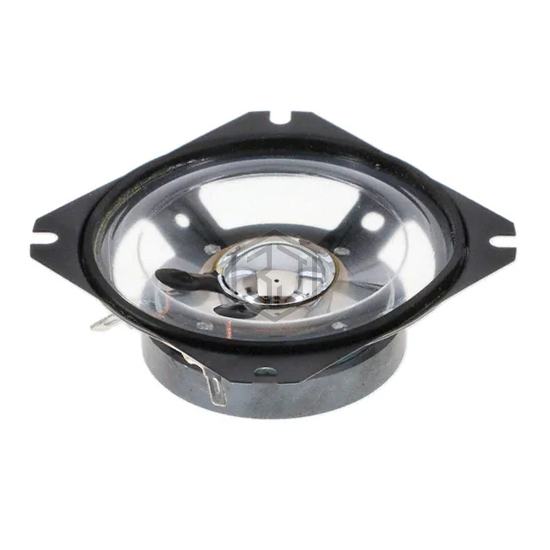

WATERPROOF HI-TEMP SPEAKER 8OHM
SW870508-1 is a Speakers manufactured by DB Unlimited. WATERPROOF HI-TEMP SPEAKER 8OHM. Key specifications: size / dimension 3.425" L x 3.425" W (87.00mm x 87.00mm), termination Quick Connect, ingress protection Waterproof, power - max 15 W.
In Stock: 138
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 390 Hz ~ 7 kHz |
| Frequency - Self Resonant | 390Hz |
| Impedance | 8 Ohms |
| Efficiency - dBA | 96.00 |
| Efficiency - Testing | 1W/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 10 W |
| Power - Max | 15 W |
| Port Location | Top |
| Shape | Round, Square Frame |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | - |
| Ingress Protection | Waterproof |
| Ratings | - |
| Termination | Quick Connect |
| Size / Dimension | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
Submit your RFQ for SW870508-1 and get a quote within 24 hours.
