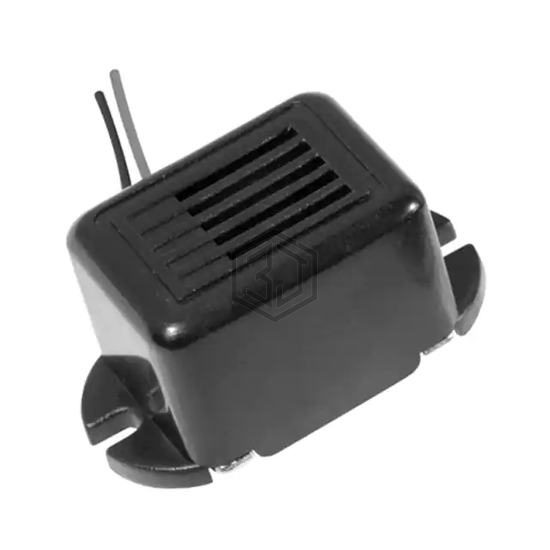

IE320425-1 - DB Unlimited - Alarms, Buzzers, and Sirens

IE320425-1

DB Unlimited

BUZZER ELECTRO 24V 32X17 FLANGE

IE320425-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER ELECTRO 24V 32X17 FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -10°C ~ 60°C, voltage - rated 24 V, current - supply 30mA.

In Stock: 361

Product Attributes

AttributeValue
Product StatusActive
Driver CircuitryIndicator, Internally Driven
Input TypeDC
Voltage - Rated24 V
Voltage Range15 ~ 27V
Frequency400Hz
TechnologyElectromechanical
Operating ModeSingle Tone
Duration-
Sound Pressure Level (SPL)-
Current - Supply30mA
Port LocationTop
Operating Temperature-10°C ~ 60°C
Approval Agency-
Ratings-
Ingress Protection-
Mounting TypePanel Mount, Flange
TerminationWire Leads
Size / Dimension1.260" L x 0.669" W (32.00mm x 17.00mm)
Height - Seated (Max)0.610" (15.50mm)

Frequently Asked Questions

IE320425-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER ELECTRO 24V 32X17 FLANGE

The mounting type of IE320425-1 is Panel Mount, Flange.

The operating temperature range of IE320425-1 is -10°C ~ 60°C.

The supply voltage of IE320425-1 is 24 V.
