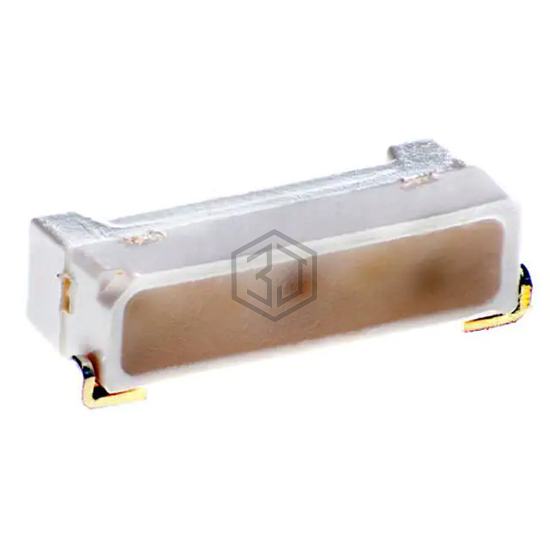

LED RGB 6PLCC SMD R/A
QLS6A-FKW-CNSNSF043 is a LED Indication - Discrete manufactured by CreeLED, Inc.. LED RGB 6PLCC SMD R/A. Key specifications: mounting type Surface Mount, Right Angle, voltage - forward (vf) (typ) 2.1V Red, 3V Green, 3.1V Blue, package / case 6-SMD, J-Lead, color Red, Green, Blue (RGB).
In Stock: 18,516
| Attribute | Value |
|---|---|
| Product Status | Active |
| Color | Red, Green, Blue (RGB) |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 1850mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 0.90mm x 3.95mm |
| Voltage - Forward (Vf) (Typ) | 2.1V Red, 3V Green, 3.1V Blue |
| Current - Test | 14mA Red, 12mA Green, 16mA Blue |
| Viewing Angle | - |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 622nm Red, 530nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 6-SMD, J-Lead |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 4.45mm L x 1.50mm W |
| Height (Max) | 1.30mm |
Submit your RFQ for QLS6A-FKW-CNSNSF043 and get a quote within 24 hours.
