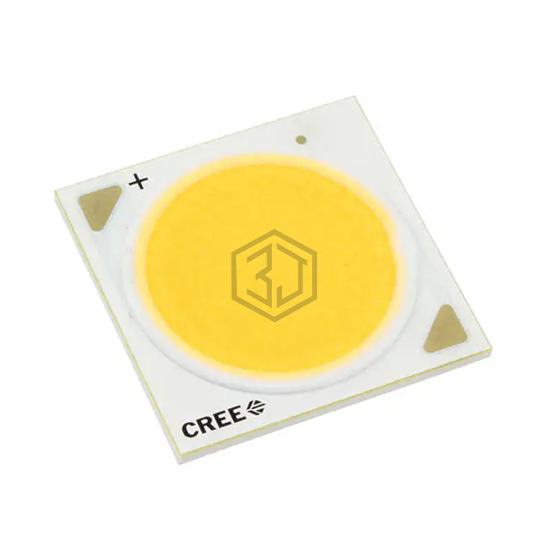

LED COB CXB3590 5000K WHT SMD
CXB3590-0000-000N0HCD50E is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COB CXB3590 5000K WHT SMD. Key specifications: voltage - forward (vf) (typ) 36V, color White, Cool, current - max 3.6A, size / dimension 34.85mm L x 34.85mm W.
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5000K 5-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 12500lm (12000lm ~ 13000lm) |
| Current - Test | 2.4A |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 36V |
| Lumens/Watt @ Current - Test | 145 lm/W |
| Current - Max | 3.6A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 34.85mm L x 34.85mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 30.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for CXB3590-0000-000N0HCD50E and get a quote within 24 hours.
