LED COOL WHITE 5000K SCREW MOUNT

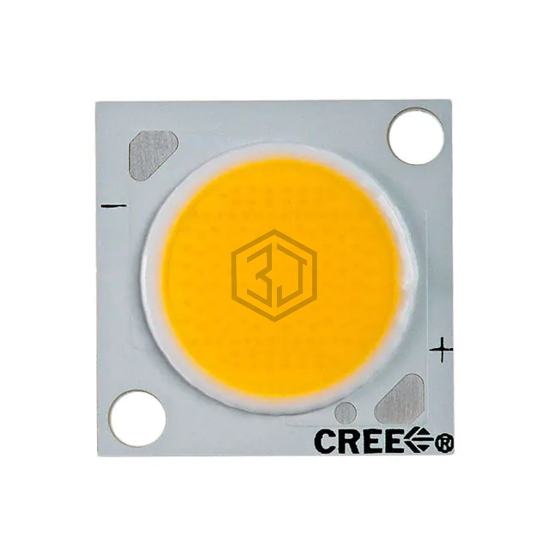

CXA2011-0000-000P00J050H is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED COOL WHITE 5000K SCREW MOUNT. Key specifications: voltage - forward (vf) (typ) 40V, color White, Cool, current - max 1A, size / dimension 22.00mm L x 22.00mm W.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5000K 2-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 1120lm (1040lm ~ 1200lm) |
| Current - Test | 270mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 40V |
| Lumens/Watt @ Current - Test | 104 lm/W |
| Current - Max | 1A |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 22.00mm L x 22.00mm W |
| Height | 2.28mm |
| Light Emitting Surface (LES) | - |
| Lens Type | Flat |
Submit your RFQ for CXA2011-0000-000P00J050H and get a quote within 24 hours.
