LED LIGHTING CHIP-ON-BOARD (COB)

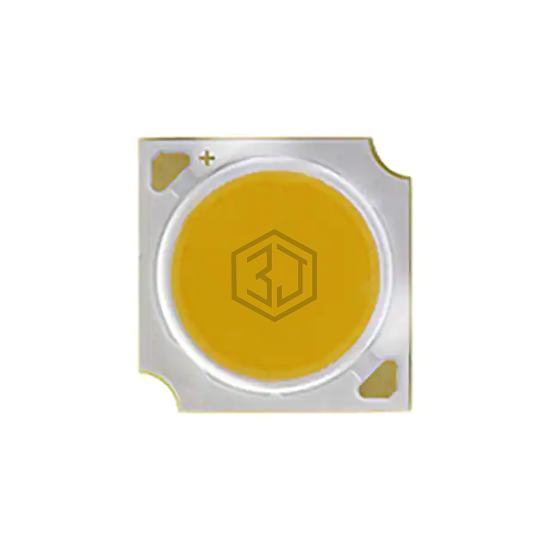

CMT1925-0000-00PN0U0A30G is a LED Lighting - COBs, Engines, Modules, Strips manufactured by CreeLED, Inc.. LED LIGHTING CHIP-ON-BOARD (COB). Key specifications: voltage - forward (vf) (typ) 34.2V, color White, Warm, current - max 915mA, size / dimension 19.00mm L x 19.00mm W.
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 3211lm (Typ) |
| Current - Test | 700mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 34.2V |
| Lumens/Watt @ Current - Test | 134 lm/W |
| Current - Max | 915mA |
| CRI (Color Rendering Index) | 90 |
| Viewing Angle | 115° |
| Features | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Height | 1.45mm |
| Light Emitting Surface (LES) | 14.50mm Dia |
| Lens Type | Flat |
Submit your RFQ for CMT1925-0000-00PN0U0A30G and get a quote within 24 hours.
