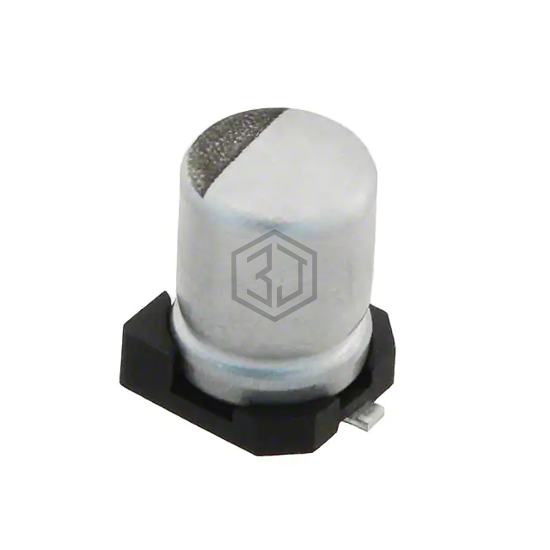

Cornell Dubilier Electronics (CDE)
CAP ALUM 2.2UF 20% 50V SMD
AVE225M50B12T-F is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 2.2UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,072
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 75.36Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15 mA @ 120 Hz |
| Ripple Current @ High Frequency | 22.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.209" (5.30mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
