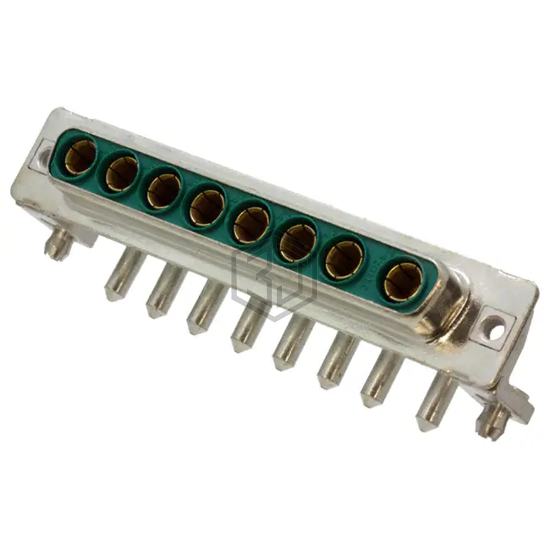

CONN D-SUB RCPT 8POS R/A SLDR
3008W8SXX56N40X is a D-Sub Connectors manufactured by Conec. CONN D-SUB RCPT 8POS R/A SLDR. Key specifications: mounting type Through Hole, Right Angle, current rating (amps) 20A, termination Solder, number of positions 8 (Power).
In Stock: 130
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 8 (Power) |
| Number of Rows | 1 |
| Mounting Type | Through Hole, Right Angle |
| Shell Size, Connector Layout | 4 (DC, C) - 8W8 |
| Contact Type | Power |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Steel, Tin Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 20A |
| Backset Spacing | 0.459" (11.65mm) |
| Features | Board Lock |
Submit your RFQ for 3008W8SXX56N40X and get a quote within 24 hours.
