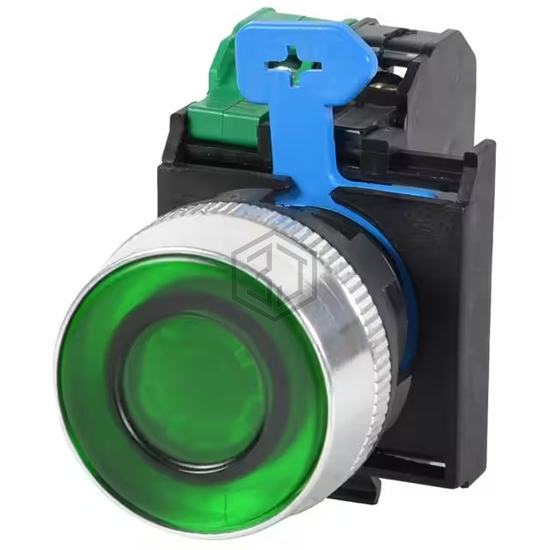

22MM IPB 24V GN LED/LENS 1NO/1NC
W22IPB-FG-FM24LG-10/01 is a Pushbutton Switches manufactured by c3controls. 22MM IPB 24V GN LED/LENS 1NO/1NC. Key specifications: mounting type Panel Mount, Rear, operating temperature -40°C ~ 55°C, voltage rating - dc 28 V, current rating (amps) 10A (AC), 2.5A (DC).
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Mounting Type | Panel Mount, Rear |
| Type | Standard, Illuminated |
| Circuit | DPST-NO/NC |
| Switch Function | On-Mom, Off-Mom |
| Current Rating (Amps) | 10A (AC), 2.5A (DC) |
| Voltage Rating - AC | 72 V |
| Voltage Rating - DC | 28 V |
| Actuator Type | Round, Button, Flush |
| Actuator Marking | No Marking |
| Color - Actuator/Cap | Green |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 24 VAC/DC |
| Termination Style | Screw Terminal |
| Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Features | - |
| Panel Cutout Dimensions | Circular - 22.50mm Dia |
| Operating Temperature | -40°C ~ 55°C |
Submit your RFQ for W22IPB-FG-FM24LG-10/01 and get a quote within 24 hours.
