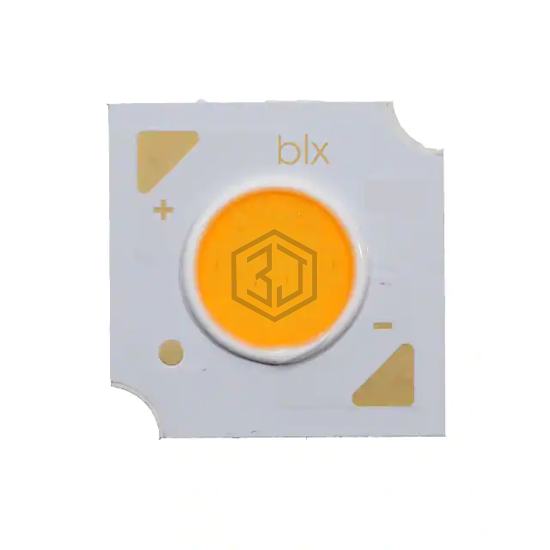

BXRH-40E1000-B-73 - Bridgelux - LED Lighting - COBs, Engines, Modules, Strips

BXRH-40E1000-B-73

Bridgelux

V6 HD NEUTRAL WHITE LED ARRAY

BXRH-40E1000-B-73 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V6 HD NEUTRAL WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 35.4V, color White, Neutral, current - max 480mA, size / dimension 13.50mm L x 13.50mm W.

In Stock: 1,178

Product Attributes

AttributeValue
Product StatusActive
TypeChip On Board (COB)
ColorWhite, Neutral
CCT (K)4000K 3-Step MacAdam Ellipse
Wavelength-
ConfigurationSquare
Luminous Flux @ Current/Temperature1452lm (Typ)
Current - Test350mA
Temperature - Test85°C
Voltage - Forward (Vf) (Typ)35.4V
Lumens/Watt @ Current - Test117 lm/W
Current - Max480mA
CRI (Color Rendering Index)80
Viewing Angle120°
Features-
Size / Dimension13.50mm L x 13.50mm W
Height1.63mm
Light Emitting Surface (LES)7.00mm Dia
Lens TypeFlat

Frequently Asked Questions

BXRH-40E1000-B-73 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V6 HD NEUTRAL WHITE LED ARRAY

The supply voltage of BXRH-40E1000-B-73 is 35.4V.

The color of BXRH-40E1000-B-73 is White, Neutral.

The current rating of BXRH-40E1000-B-73 is 480mA.
