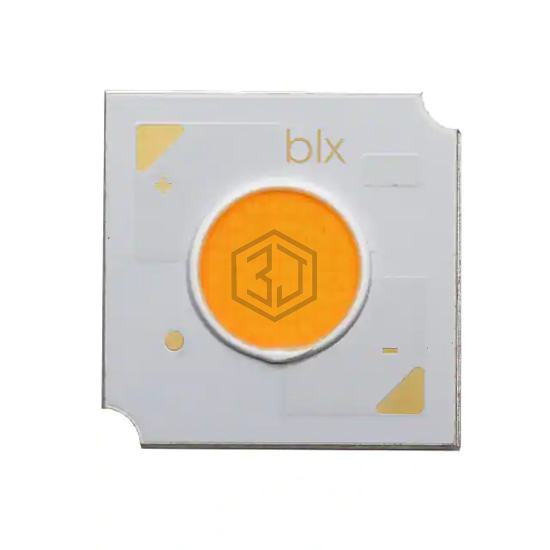

V9 HD WARM WHITE LED ARRAY
BXRH-30H3000-D-73 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V9 HD WARM WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 35.4V, color White, Warm, current - max 960mA, size / dimension 19.00mm L x 19.00mm W.
In Stock: 823
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 2225lm (Typ) |
| Current - Test | 700mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 35.4V |
| Lumens/Watt @ Current - Test | 90 lm/W |
| Current - Max | 960mA |
| CRI (Color Rendering Index) | 97 (Typ) |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Height | 1.63mm |
| Light Emitting Surface (LES) | 9.20mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRH-30H3000-D-73 and get a quote within 24 hours.
