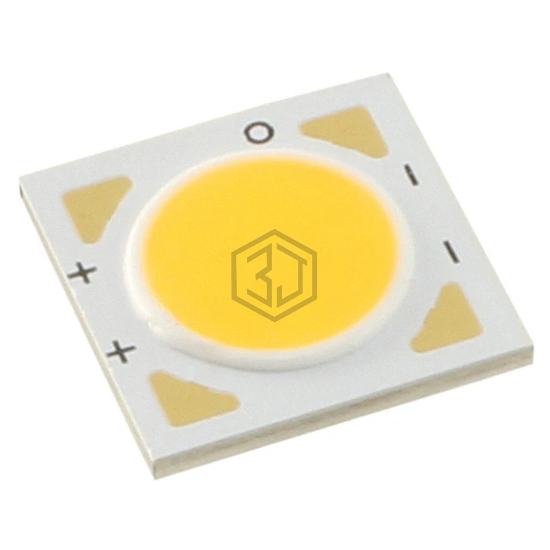

LED ARRAY 800LM COOL WHITE COB
BXRE-50C0800-B-24 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED ARRAY 800LM COOL WHITE COB. Key specifications: voltage - forward (vf) (typ) 17.4V, color White, Cool, current - max 700mA, size / dimension 12.50mm L x 12.50mm W.
In Stock: 108
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Chip On Board (COB) |
| Color | White, Cool |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 788lm (Typ) |
| Current - Test | 350mA |
| Temperature - Test | 85°C |
| Voltage - Forward (Vf) (Typ) | 17.4V |
| Lumens/Watt @ Current - Test | 130 lm/W |
| Current - Max | 700mA |
| CRI (Color Rendering Index) | 70 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 12.50mm L x 12.50mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 8.10mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-50C0800-B-24 and get a quote within 24 hours.
