LED COB WHITE

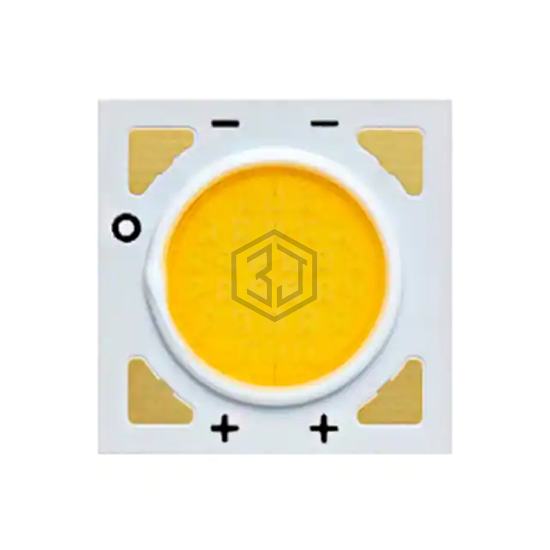

BXRE-27S0801-D-73 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. LED COB WHITE. Key specifications: voltage - forward (vf) (typ) 17.2V, color White, Warm, current - max 700mA, size / dimension 12.50mm L x 12.50mm W.
In Stock: 121
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 630lm (Typ) |
| Current - Test | 350mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 17.2V |
| Lumens/Watt @ Current - Test | 105 lm/W |
| Current - Max | 700mA |
| CRI (Color Rendering Index) | 98 (Typ) |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 12.50mm L x 12.50mm W |
| Height | 1.70mm |
| Light Emitting Surface (LES) | 9.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-27S0801-D-73 and get a quote within 24 hours.
