V18C WARM WHITE LED ARRAY

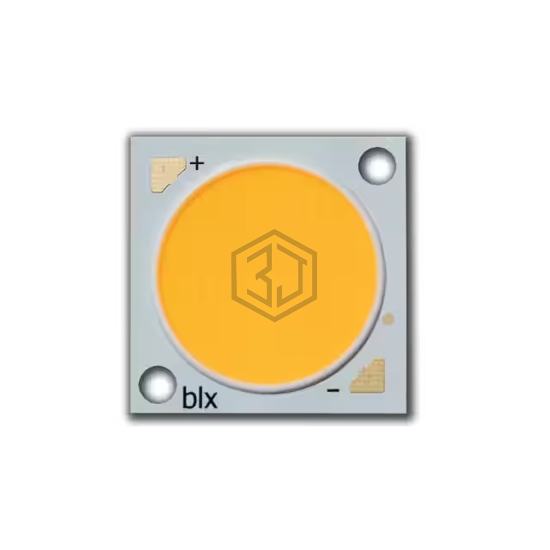

BXRE-27E4000-C-83 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. V18C WARM WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 33.9V, color White, Warm, current - max 3A, size / dimension 24.00mm L x 24.00mm W.
In Stock: 600
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Warm |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Square |
| Luminous Flux @ Current/Temperature | 6024lm (Typ) |
| Current - Test | 1.05A |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 33.9V |
| Lumens/Watt @ Current - Test | 169 lm/W |
| Current - Max | 3A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | - |
| Size / Dimension | 24.00mm L x 24.00mm W |
| Height | 1.65mm |
| Light Emitting Surface (LES) | 19.60mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRE-27E4000-C-83 and get a quote within 24 hours.
