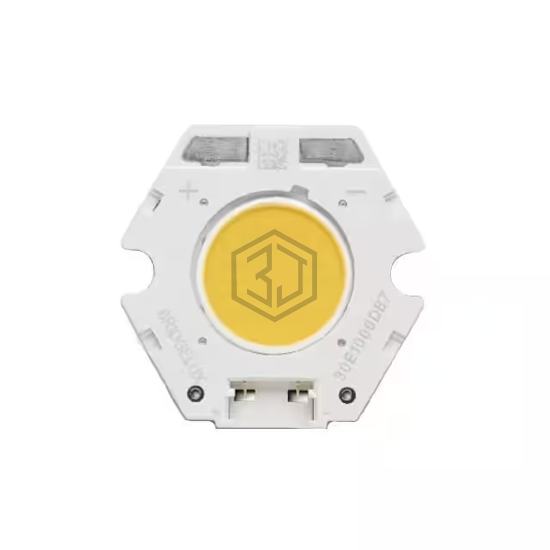

VERO 10D NEUTRAL WHITE LED ARRAY
BXRC-40E1000-D-83 is a LED Lighting - COBs, Engines, Modules, Strips manufactured by Bridgelux. VERO 10D NEUTRAL WHITE LED ARRAY. Key specifications: voltage - forward (vf) (typ) 24.9V, color White, Neutral, current - max 1A, size / dimension 20.00mm Dia.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Chip On Board (COB) |
| Color | White, Neutral |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| Wavelength | - |
| Configuration | Starboard |
| Luminous Flux @ Current/Temperature | 1141lm (Typ) |
| Current - Test | 250mA |
| Temperature - Test | 25°C |
| Voltage - Forward (Vf) (Typ) | 24.9V |
| Lumens/Watt @ Current - Test | 182 lm/W |
| Current - Max | 1A |
| CRI (Color Rendering Index) | 80 |
| Viewing Angle | 120° |
| Features | With Connector |
| Size / Dimension | 20.00mm Dia |
| Height | 1.90mm |
| Light Emitting Surface (LES) | 10.00mm Dia |
| Lens Type | Flat |
Submit your RFQ for BXRC-40E1000-D-83 and get a quote within 24 hours.
