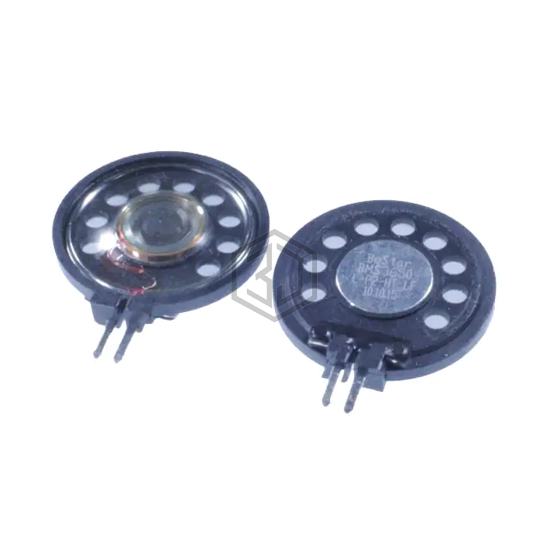

ROUND SPEAKER, DIAMETER 36MM, 1.
BMS3650L-P2-HT is a Speakers manufactured by BeStar Technologies, Inc.. ROUND SPEAKER, DIAMETER 36MM, 1.. Key specifications: size / dimension 1.732" L x 0.417" W (44.00mm x 36.00mm), termination Solder Pads, power - max 1.5 W, frequency range 350 Hz ~ 6 kHz.
In Stock: 65
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 350 Hz ~ 6 kHz |
| Frequency - Self Resonant | 540Hz |
| Impedance | 50 Ohms |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | - |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 1 W |
| Power - Max | 1.5 W |
| Port Location | Top |
| Shape | Round |
| Material - Cone | Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Pads |
| Size / Dimension | 1.732" L x 0.417" W (44.00mm x 36.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
Submit your RFQ for BMS3650L-P2-HT and get a quote within 24 hours.
