AC/DC CONVERTER 36V 137W

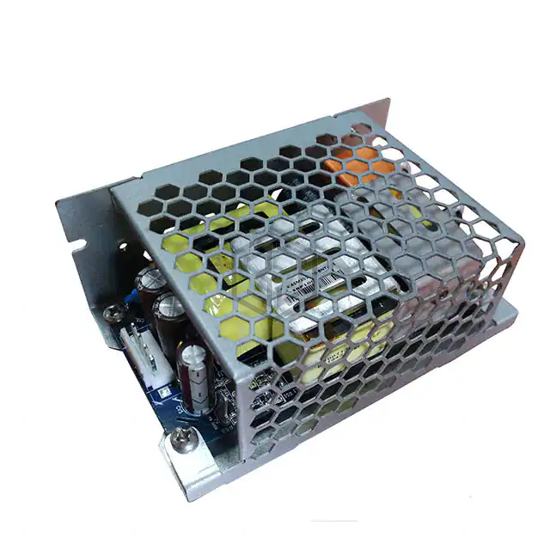

ASM201-360-BEH-PF1 is a AC DC Converters manufactured by Astrodyne TDI. AC/DC CONVERTER 36V 137W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C (With Derating), voltage - input 80 ~ 240 VAC, size / dimension 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm).
In Stock: 6
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 240 VAC |
| Voltage - Output 1 | 36V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.8 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 137W (198W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 94% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Features | Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) |
| Approval Agency | CB, CE, cTUVus, TUV |
| Standard Number | 60601-1; 60950-1; 62368-1 |
Submit your RFQ for ASM201-360-BEH-PF1 and get a quote within 24 hours.
