3ALOWVIN, VERYLOW DO LOW NOISE,H

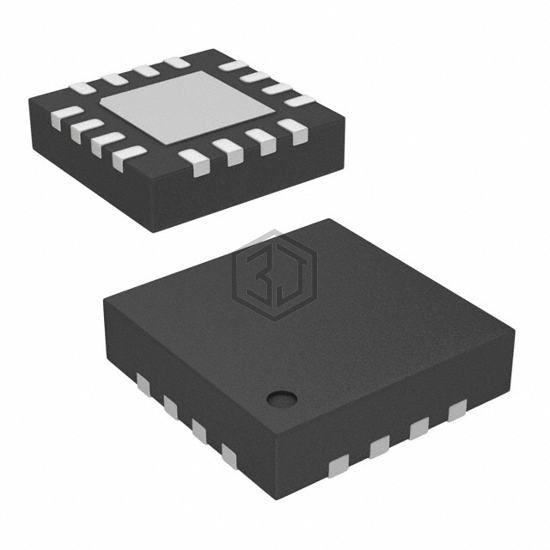

ADP1763WACPZ-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. 3ALOWVIN, VERYLOW DO LOW NOISE,H. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFQFN Exposed Pad, CSP, current - supply (max) 16 mA.
In Stock: 5,104
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 1.98V |
| Voltage - Output (Min/Fixed) | 0.5V |
| Voltage - Output (Max) | 1.5V |
| Voltage Dropout (Max) | 0.145V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 8 mA |
| Current - Supply (Max) | 16 mA |
| PSRR | 62dB ~ 33dB (10kHz ~ 1MHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 16-LFCSP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP1763ACPZ-R7 | Analog Devices Inc. | IC REG LINEAR POS ADJ 3A 16LFCSP | 100% | View |
| TPS7N5301RTER | Texas Instruments | IC REG LINEAR POS ADJ 3A 16-WQFN | 94% | View |
| ADP1764ACPZ-R7 | Analog Devices Inc. | IC REG LINEAR POS ADJ 4A 16LFCSP | 82% | View |
| LP38513TJ-ADJ/NOPB | Texas Instruments | IC REG LIN POS ADJ 3A TO263 THIN | 69% | View |
| TPS7H1101AY/EM | Texas Instruments | RADIATION-HARDENED QMLV, 1.5-V T | 60% | View |
| TPL9308AD-QF6R-S | 3PEAK | IC REG LINEAR POS ADJ 3A 20-QFN | 57% | View |
Submit your RFQ for ADP1763WACPZ-R7 and get a quote within 24 hours.
