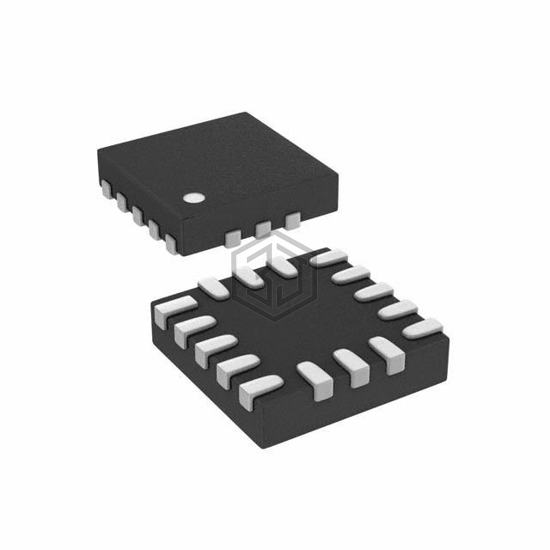

IC SWITCH QUAD SPDT 16LFCSP
ADG858BCPZ-REEL is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH QUAD SPDT 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFQFN, CSP, number of circuits 2.
In Stock: 9,636
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 720mOhm |
| Channel-to-Channel Matching (ΔRon) | 40mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 27ns, 12ns |
| -3db Bandwidth | 70MHz |
| Charge Injection | 45pC |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN, CSP |
| Supplier Device Package | 16-LFCSP-UQ (2.1x2.1) |
ADG858BCPZ-REEL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG858BCPZ-REEL7 | Analog Devices Inc. | IC SWITCH QUAD SPDT 16LFCSP | 100% | View |
| ADG836LYRMZ | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 79% | View |
| ADG836YRM-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 79% | View |
| ADG836YRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 79% | View |
| ADG836YRMZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 79% | View |
| STG4158BJR | STMicroelectronics | IC SWITCH SPDT 6FLIPCHIP | 61% | View |
Submit your RFQ for ADG858BCPZ-REEL and get a quote within 24 hours.
