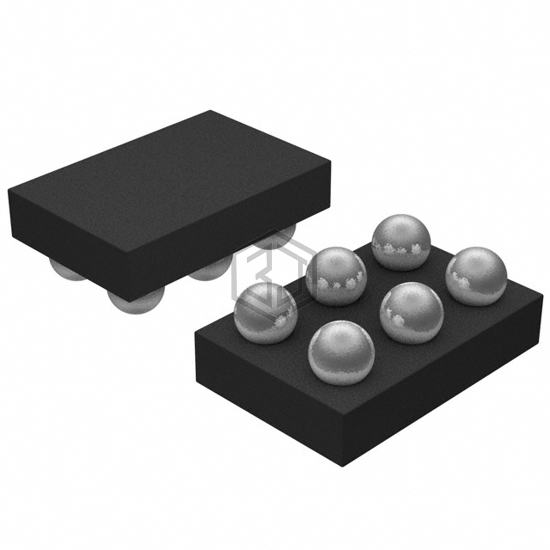

IC SWITCH SPDT 6WLCSP
ADG819BCBZ-REEL7 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc.. IC SWITCH SPDT 6WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-WFBGA, WLCSP, number of circuits 1.
In Stock: 6,331
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 600mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 45ns, 16ns |
| -3db Bandwidth | 17MHz |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 80pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -72dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFBGA, WLCSP |
| Supplier Device Package | 6-WLCSP (1.14x2.18) |
