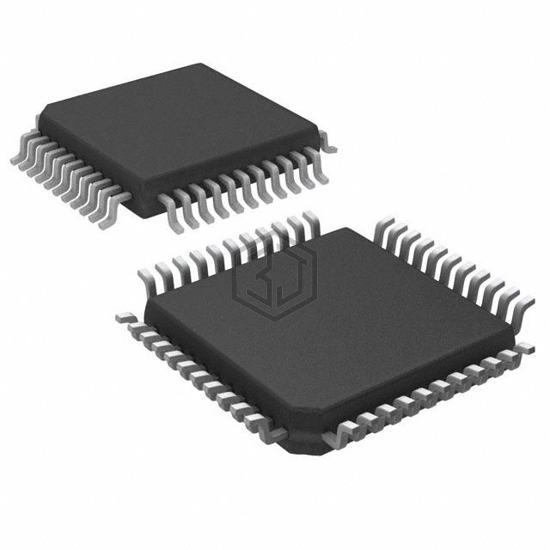

IC DAC 14BIT V-OUT 44MQFP
AD7841BSZ-REEL is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. IC DAC 14BIT V-OUT 44MQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 44-QFP.
In Stock: 5,048
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Bits | 14 |
| Number of D/A Converters | 8 |
| Settling Time | 31µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) |
| Mounting Type | Surface Mount |
AD7841BSZ-REEL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AD7841ASZ-REEL | Analog Devices Inc. | IC DAC 14BIT V-OUT 44MQFP | 100% | View |
| AD7841ASZ | Analog Devices Inc. | IC DAC 14BIT V-OUT 44MQFP | 100% | View |
| AD7841BSZ | Analog Devices Inc. | IC DAC 14BIT V-OUT 44MQFP | 100% | View |
| AD7839ASZ-REEL | Analog Devices Inc. | IC DAC 13BIT V-OUT 44MQFP | 92% | View |
| AD7839ASZ | Analog Devices Inc. | IC DAC 13BIT V-OUT 44MQFP | 92% | View |
| AD5361BSTZ-REEL | Analog Devices Inc. | IC DAC 14BIT V-OUT 52LQFP | 83% | View |
