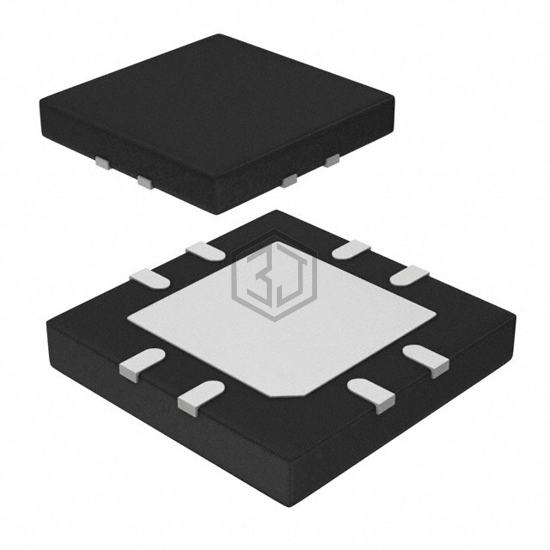

Analog Devices Inc./Maxim Integrated
IC REG LIN 3.3V/3V 300MA 8TDFN
MAX8559ETAAG+TG50 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc./Maxim Integrated. IC REG LIN 3.3V/3V 300MA 8TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-WQFN Exposed Pad, current - supply (max) 220 µA.
In Stock: 7,217
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.3V, 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.12V @ 100mA, 0.12V @ 100mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 290 µA |
| Current - Supply (Max) | 220 µA |
| PSRR | 70dB ~ 54dB (10kHz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WQFN Exposed Pad |
| Supplier Device Package | 8-TQFN (3x3) |
MAX8559ETAAG+TG50 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC5335-PJYMT-TR | Microchip Technology | IC REG LINEAR 2.5V/3V 6TMLF | 79% | View |
| MCP1812AT-033/LB | Microchip Technology | IC REG LINEAR 3.3V 300MA SC70-3 | 71% | View |
| NCP700MN275R2G | onsemi | IC REG LINEAR 2.75V 200MA 6DFN | 69% | View |
| MCP1812AT-030/7QX | Microchip Technology | IC REG LINEAR 3V 300MA 4UQFN | 68% | View |
| MIC5335-GWYMT-TR | Microchip Technology | IC REG LINEAR 1.6V/1.8V 6TMLF | 67% | View |
| MCP1812AT-025/HCA | Microchip Technology | IC REG LINEAR 300MA 4UDFN | 63% | View |
Submit your RFQ for MAX8559ETAAG+TG50 and get a quote within 24 hours.
