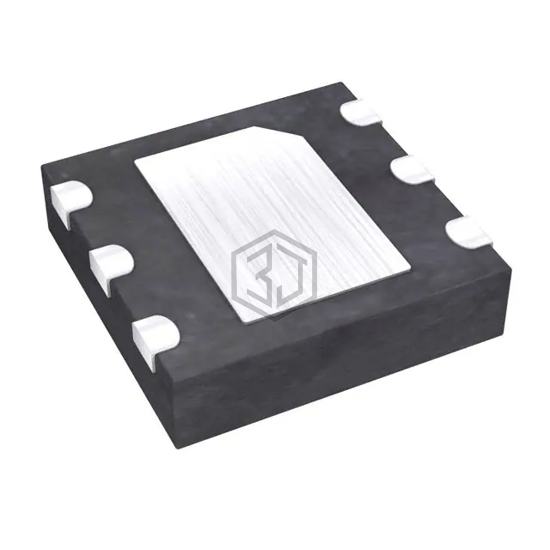

Analog Devices Inc./Maxim Integrated
IC GATE DRVR LOW-SIDE 6TDFN
MAX5078AATT+T is a PMIC - Gate Drivers manufactured by Analog Devices Inc./Maxim Integrated. IC GATE DRVR LOW-SIDE 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4V ~ 15V, package / case 6-WDFN Exposed Pad.
In Stock: 5,405
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4V ~ 15V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 32ns, 26ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (3x3) |
MAX5078AATT+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN7171MX-F085P | onsemi | IC GATE DRVR HIGH-SIDE 8SOIC | 82% | View |
| UCC27518DBVR | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 77% | View |
| UCC27512MDRSTEP | Texas Instruments | IC GATE DRVR LOW-SIDE 6SON | 77% | View |
| UCC27517DBVT | Texas Instruments | IC GATE DRVR LOW-SIDE SOT23-5 | 77% | View |
| IVCR1401DR | Inventchip | SIC MOSFET AND IGBT DRIVER, 4A, | 62% | View |
| NCV5705BDR2G | onsemi | IGBT GATE DRIVERS, HIGH-CURRENT, | 56% | View |
Submit your RFQ for MAX5078AATT+T and get a quote within 24 hours.
