Analog Devices Inc./Maxim Integrated

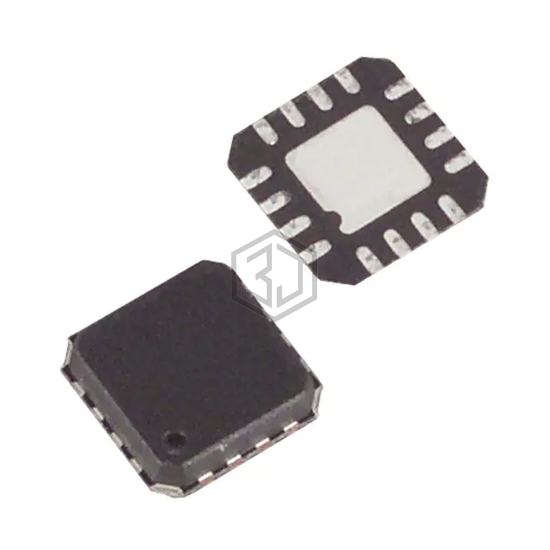

LOW-VOLTAGE 8:1 MUX/DUAL 4:1 MUX
MAX4692EGE+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. LOW-VOLTAGE 8:1 MUX/DUAL 4:1 MUX. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VQFN Exposed Pad, number of circuits 2.
In Stock: 4,192
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 25Ohm |
| Channel-to-Channel Matching (ΔRon) | 2Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 11V, ±2V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 2V ~ 11V, ±2V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 80ns, 50ns |
| -3db Bandwidth | - |
| Charge Injection | 1.8pC |
| Channel Capacitance (CS(off), CD(off)) | 9pF, 36pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | -84dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VQFN Exposed Pad |
| Supplier Device Package | 16-QFN (4x4) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4719EUB+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 81% | View |
| ISL43141IBZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 76% | View |
| ISL43140IVZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16TSSOP | 76% | View |
| MAX4737ETE+T | Analog Devices Inc./Maxim Integrated | 4.5 OHM QUAD SPST ANALOG SWITCHE | 73% | View |
| ISL84522IVZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16TSSOP | 64% | View |
| ISL84521IBZ | Intersil | SPST ANALOG SWITCH, 4 FUNC, 1 CH | 64% | View |
Submit your RFQ for MAX4692EGE+T and get a quote within 24 hours.
