Analog Devices Inc./Maxim Integrated
IC ANLG SWITCH SPDT DUAL TDFN

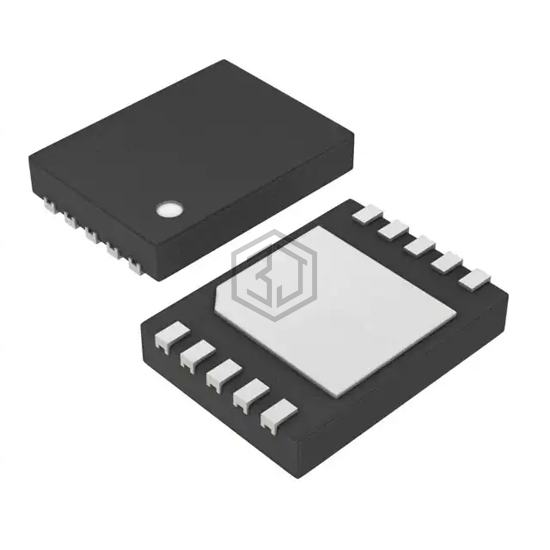

MAX4685ETB+T is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC ANLG SWITCH SPDT DUAL TDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFDFN Exposed Pad, number of circuits 2.
In Stock: 5,508
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 800mOhm |
| Channel-to-Channel Matching (ΔRon) | 60mOhm (Typ) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | - |
| Charge Injection | 200pC |
| Channel Capacitance (CS(off), CD(off)) | 84pF, 37pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -68dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-TDFN (3x4) |
MAX4685ETB+T is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AS1746-BTDT | ams | IC SWITCH DUAL SPDT 10-TDFN | 80% | View |
| RS2103XH | Runic Technology | IC SWITCH SPDT SOT23-6 | 71% | View |
| MAX4625EUT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SOT23-6 | 71% | View |
| DG411LEDQ-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16-TSSOP | 65% | View |
| AOZ6232QI | Alpha & Omega Semiconductor Inc. | IC USB 2.0 SWITCH 10QFN | 64% | View |
| ISL84581IAZ-T | Renesas Electronics America Inc | IC MULTIPLEXER 8X1 16QSOP | 50% | View |
Submit your RFQ for MAX4685ETB+T and get a quote within 24 hours.
