IC MUX 8CH DUAL 4CH 16DIP

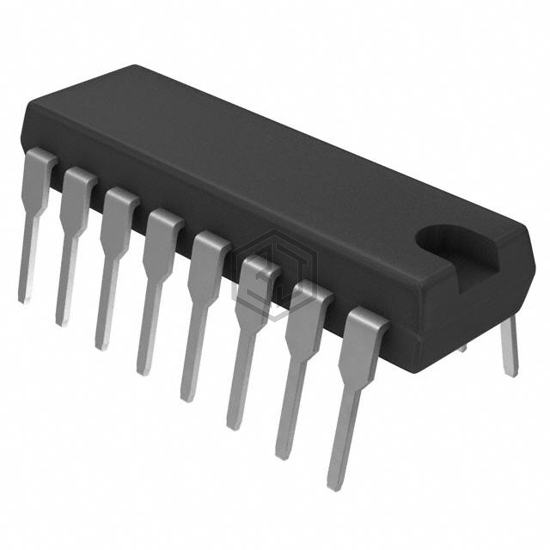

MAX4509CPE is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX 8CH DUAL 4CH 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 2.
In Stock: 6,801
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400Ohm |
| Channel-to-Channel Matching (ΔRon) | 15Ohm (Max) |
| Voltage - Supply, Single (V+) | 9V ~ 36V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 20V |
| Switch Time (Ton, Toff) (Max) | 275ns, 200ns |
| -3db Bandwidth | - |
| Charge Injection | 2pC |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 14pF |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -62dB @ 1MHz |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
MAX4509CPE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4708EPE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16DIP | 91% | View |
| MAX4535EPD+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 2X1 14DIP | 91% | View |
| MAX4534CPD | Analog Devices Inc./Maxim Integrated | IC MUX FAULT-PRO 4-TO-1 14-DIP | 83% | View |
| MAX4690EPE | Analog Devices Inc./Maxim Integrated | IC SW DUAL 1.25 OHM SPST 16-DIP | 71% | View |
| MAX4663EPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 63% | View |
| MAX4661CPE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16DIP | 63% | View |
