Analog Devices Inc./Maxim Integrated

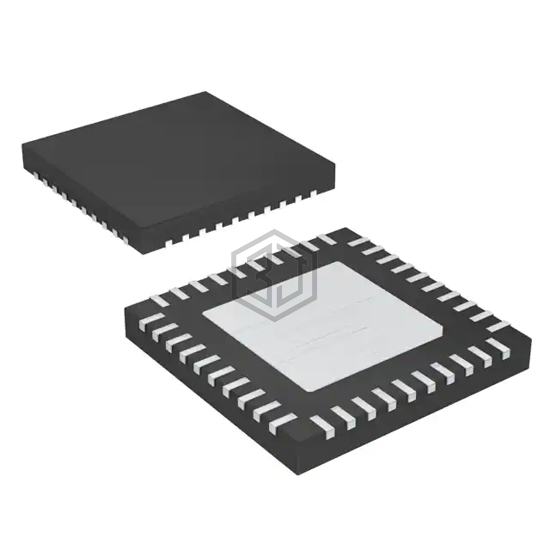

IC ADC 14BIT PIPELINED 40TQFN
MAX12555ETL+T is a Data Acquisition - Analog to Digital Converters (ADC) manufactured by Analog Devices Inc./Maxim Integrated. IC ADC 14BIT PIPELINED 40TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 3.15V ~ 3.6V, package / case 40-WFQFN Exposed Pad.
In Stock: 8,390
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 95M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3.15V ~ 3.6V |
| Voltage - Supply, Digital | 3.15V ~ 3.6V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-TQFN (5x5) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| THS1215IPWRG4 | Texas Instruments | IC ADC 12BIT PIPELINED 28TSSOP | 97% | View |
| THS1215IPWR | Texas Instruments | IC ADC 12BIT PIPELINED 28TSSOP | 97% | View |
| THS1031IDWRG4 | Texas Instruments | IC ADC 10BIT PIPELINED 28SOIC | 95% | View |
| ADC1213S105HN/C1:5 | Renesas Electronics America Inc | IC ADC 12BIT PIPELINED 32HVQFN | 89% | View |
| ADC1215S065HN/C1:5 | Renesas Electronics America Inc | IC ADC 12BIT PIPELINED 40HVQFN | 89% | View |
| ADC1113S125HN/C1:5 | Renesas Electronics America Inc | IC ADC 11BIT PIPELINED 32HVQFN | 88% | View |
Submit your RFQ for MAX12555ETL+T and get a quote within 24 hours.
