Analog Devices Inc./Maxim Integrated
IC MUX MONO CMOS ANALOG DIP

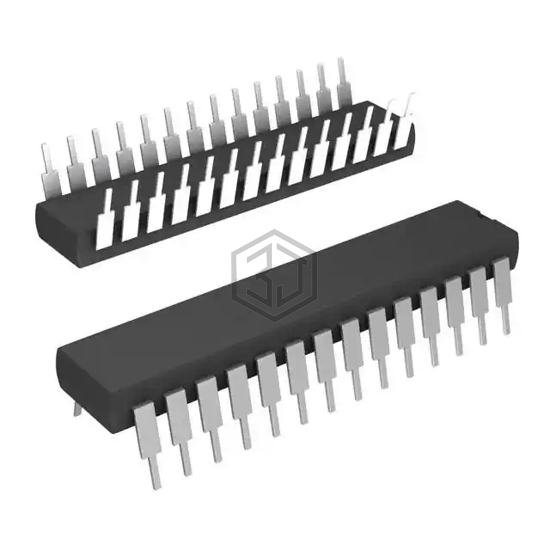

DG506ACJ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Analog Devices Inc./Maxim Integrated. IC MUX MONO CMOS ANALOG DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 28-DIP (0.600", 15.24mm), number of circuits 1.
In Stock: 4,640
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 450Ohm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 18V |
| Switch Time (Ton, Toff) (Max) | 1µs, 400ns |
| -3db Bandwidth | - |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 6pF, 45pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package | 28-PDIP |
DG506ACJ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG506ABK | Analog Devices Inc./Maxim Integrated | IC MUX CMOS ANALOG 16CH 28-DIP | 100% | View |
| DG507ACJ+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 8X1 28DIP | 89% | View |
| DG529CK | Harris Corporation | ANALOG LATCHABLE MUX, 4-CHANNEL | 86% | View |
| DG211DJ+ | Analog Devices Inc./Maxim Integrated | QUAD SPST CMOS ANALOG SWITCHES | 76% | View |
| IH5053MDE/883 | Harris Corporation | QUAD CMOS ANALOG SWITCH | 57% | View |
| IH5053MDE/883B | Harris Corporation | QUAD CMOS ANALOG SWITCH | 57% | View |
