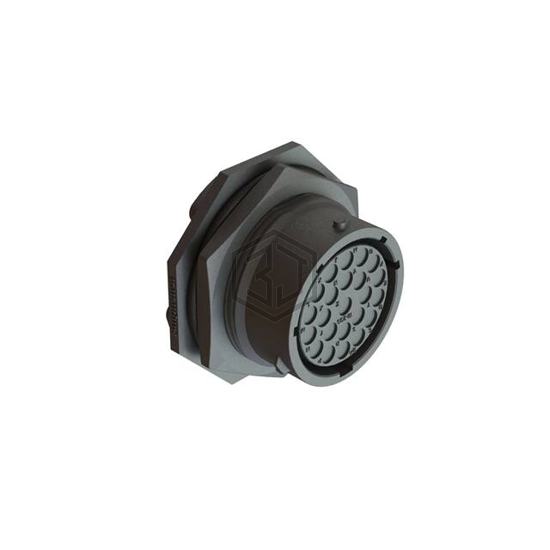

CONN RCPT FMALE 23P GOLD SOLDER
RTS718ND23S03 is a Circular Connectors manufactured by Amphenol Sine Systems Corp. CONN RCPT FMALE 23P GOLD SOLDER. Key specifications: mounting type Panel Mount, Through Hole, operating temperature -40°C ~ 125°C, voltage rating 500VAC/DC, color Black.
In Stock: 44
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle, Female Sockets |
| Number of Positions | 23 |
| Shell Size - Insert | 18-23 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder |
| Fastening Type | Bayonet Lock |
| Orientation | N (Normal) |
| Primary Material | Plastic |
| Shell Material | Thermoplastic |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IP67/IP69K - Dust Tight, Water Resistant, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Features | Board Guide |
| Shielding | Unshielded |
| Current Rating (Amps) | 13A |
| Voltage Rating | 500VAC/DC |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 125°C |
Submit your RFQ for RTS718ND23S03 and get a quote within 24 hours.
