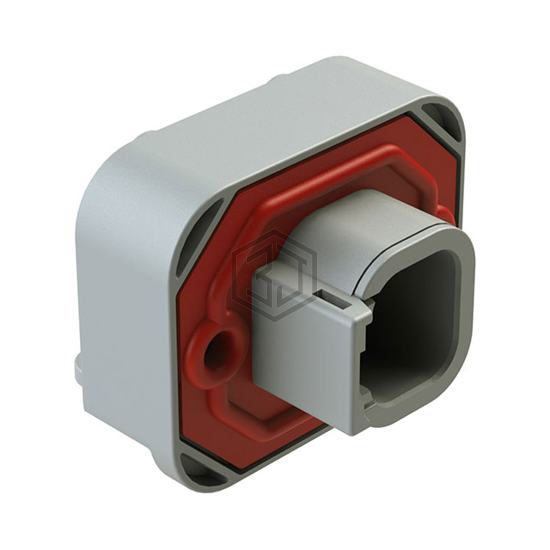

CONN HEADER R/A 4POS
ATM13-4P-BM02 is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol Sine Systems Corp. CONN HEADER R/A 4POS. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 125°C, voltage rating 250V, contact material Copper Alloy.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Male Pin |
| Pitch - Mating | - |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | - |
| Insulation Height | 1.303" (33.10mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Gold |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | Board Guide, Mating Flange, Mounting Flange, Potting Wall |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | IP67 |
| Material Flammability Rating | - |
| Insulation Color | Gray |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 250V |
Submit your RFQ for ATM13-4P-BM02 and get a quote within 24 hours.
