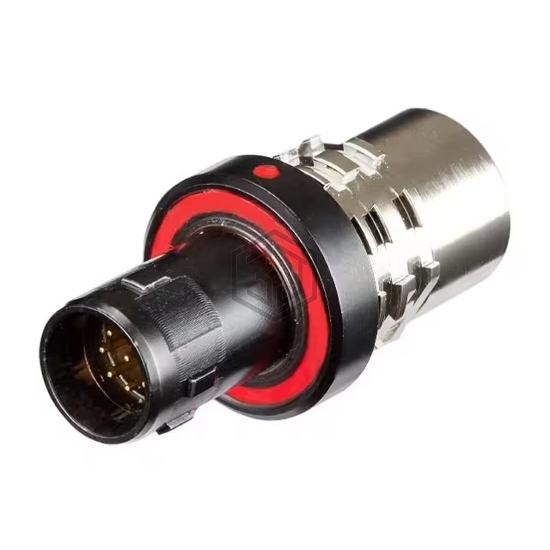

FLOS Y SERIES FIELD INSTALLABLE
FDYB-09A1MS-RDK-000 is a Circular Connectors manufactured by Amphenol LTW. FLOS Y SERIES FIELD INSTALLABLE. Key specifications: mounting type Free Hanging (In-Line), operating temperature -40°C ~ 125°C, voltage rating 200V, color Black.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 9 |
| Shell Size - Insert | B-9 |
| Shell Size, MIL | - |
| Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - |
| Termination | Solder Cup |
| Fastening Type | Push-Pull |
| Orientation | R |
| Primary Material | Metal |
| Shell Material | Metal |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Black |
| Ingress Protection | IPX8 - Waterproof |
| Material Flammability Rating | - |
| Features | Backshell |
| Shielding | Unshielded |
| Current Rating (Amps) | 5A |
| Voltage Rating | 200V |
| Cable Opening | 0.217" (5.50mm) |
| Operating Temperature | -40°C ~ 125°C |
Submit your RFQ for FDYB-09A1MS-RDK-000 and get a quote within 24 hours.
