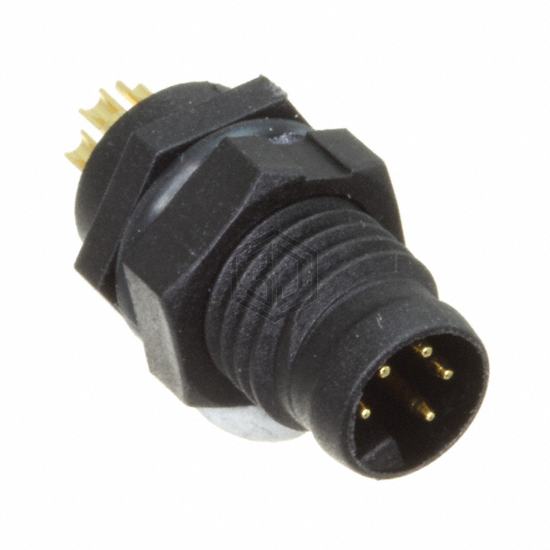

CONN PLUG MALE 5P GOLD SLDR CUP
8AP-05PMMS-SF7001 is a Circular Connectors manufactured by Amphenol LTW. CONN PLUG MALE 5P GOLD SLDR CUP. Key specifications: mounting type Panel Mount, operating temperature -40°C ~ 105°C, color Silver, current rating (amps) 1.5A.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Plug, Male Pins |
| Number of Positions | 5 |
| Shell Size - Insert | M8-5 |
| Shell Size, MIL | - |
| Mounting Type | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut |
| Termination | Solder Cup |
| Fastening Type | Threaded |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA), Nylon, Glass Filled |
| Shell Finish | - |
| Contact Finish - Mating | Gold |
| Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | - |
| Features | - |
| Shielding | Unshielded |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | - |
| Cable Opening | - |
| Operating Temperature | -40°C ~ 105°C |
Submit your RFQ for 8AP-05PMMS-SF7001 and get a quote within 24 hours.
