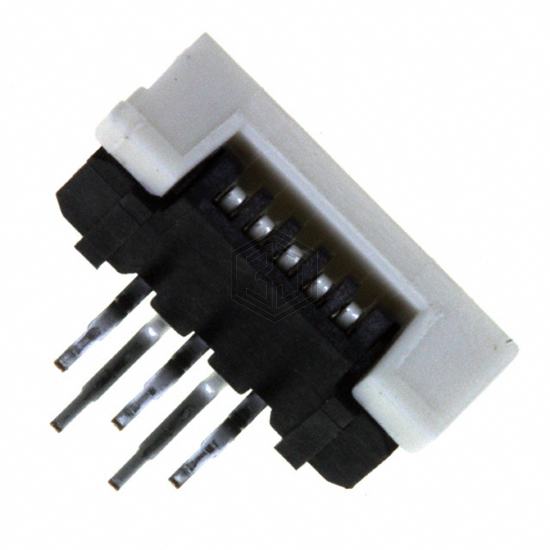

CONN CIC BOTTOM 5POS 1.00MM R/A
SLW5R-5C7LF is a FFC, FPC (Flat Flexible) Connectors manufactured by Amphenol ICC (FCI). CONN CIC BOTTOM 5POS 1.00MM R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 100V, housing material Polyamide (PA), Nylon, Glass Filled.
In Stock: 642
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Flat Flex Type | CIC |
| Mounting Type | Through Hole, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 5 |
| Pitch | 0.039" (1.00mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.157" (4.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Features | Zero Insertion Force (ZIF) |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for SLW5R-5C7LF and get a quote within 24 hours.
