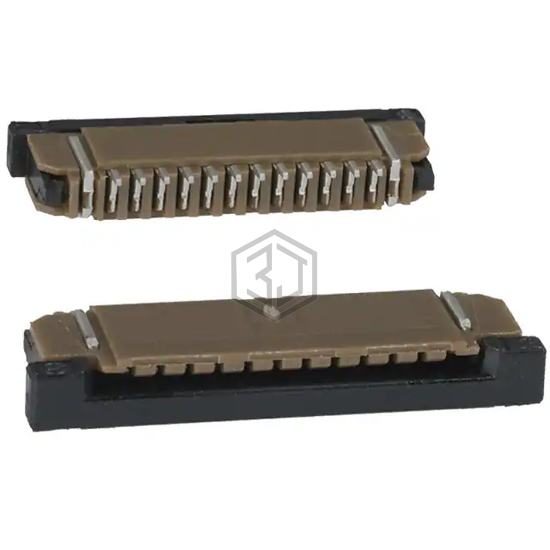

CONN FFC FPC TOP 12POS 1MM R/A
SFW12R-2STE1LF is a FFC, FPC (Flat Flexible) Connectors manufactured by Amphenol ICC (FCI). CONN FFC FPC TOP 12POS 1MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 105°C, voltage rating 100V, housing material Polyphenylene Sulfide (PPS), Glass Filled.
In Stock: 14,785
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 12 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm, 0.33mm |
| Height Above Board | 0.106" (2.70mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight, Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
