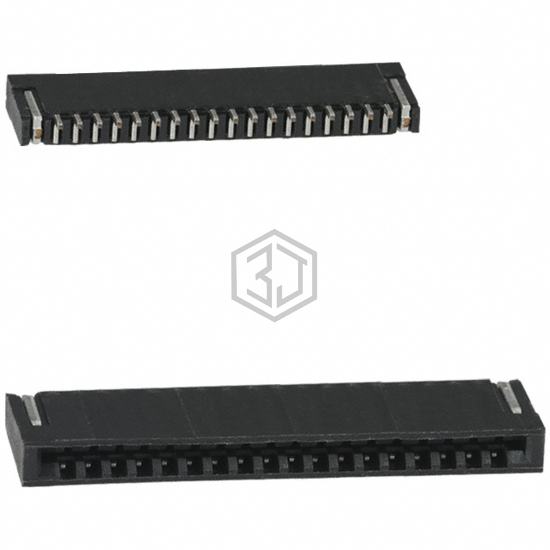

CONN FFC FPC TOP 18POS 1MM R/A
HFW18R-2STE1LF is a FFC, FPC (Flat Flexible) Connectors manufactured by Amphenol ICC (FCI). CONN FFC FPC TOP 18POS 1MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 105°C, voltage rating 100V, housing material Polyamide (PA6T), Nylon 6T, Glass Filled.
In Stock: 8,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 18 |
| Pitch | 0.039" (1.00mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.075" (1.90mm) |
| Locking Feature | - |
| Cable End Type | Straight or Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polyamide (PA6T), Nylon 6T, Glass Filled |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 100V |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for HFW18R-2STE1LF and get a quote within 24 hours.
