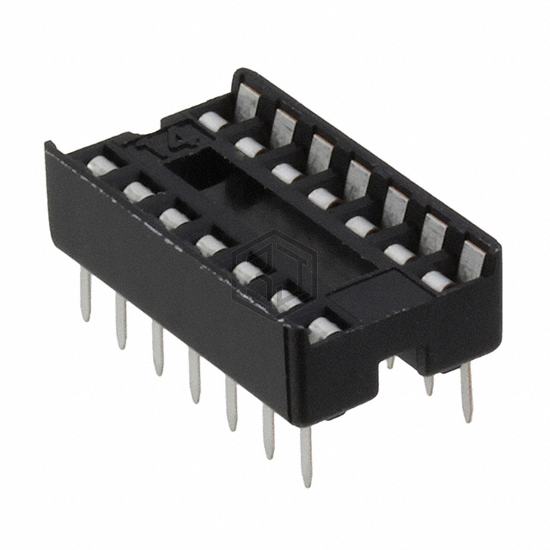

CONN IC DIP SOCKET 14POS TIN
DILB14P-223TLF is a Sockets for ICs, Transistors manufactured by Amphenol ICC (FCI). CONN IC DIP SOCKET 14POS TIN. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, housing material Polyamide (PA), Nylon, termination Solder.
In Stock: 3,696
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 14 (2 x 7) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Material - Mating | Copper Alloy |
| Mounting Type | Through Hole |
| Features | Open Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Material - Post | Copper Alloy |
| Housing Material | Polyamide (PA), Nylon |
| Operating Temperature | -55°C ~ 105°C |
Submit your RFQ for DILB14P-223TLF and get a quote within 24 hours.
