BERGSTIK STR

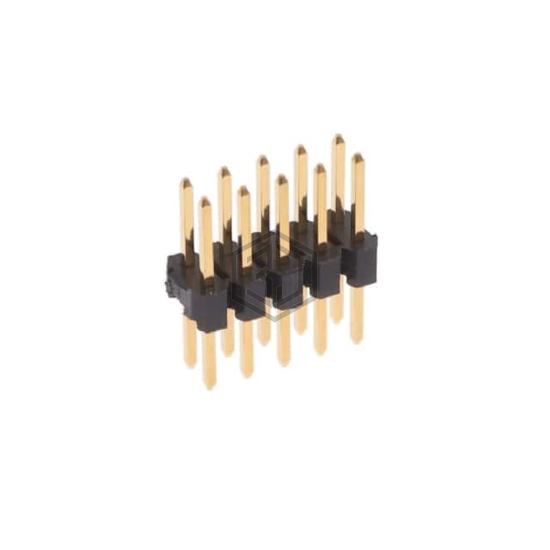

861400102YO2317LF is a Rectangular Connectors - Headers, Male Pins manufactured by Amphenol ICC (FCI). BERGSTIK STR. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 1000V, contact material Copper Alloy.
In Stock: 1,550
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Number of Positions Loaded | All |
| Style | - |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.195" (4.95mm) |
| Overall Contact Length | 0.531" (13.50mm) |
| Insulation Height | 0.102" (2.60mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - |
| Contact Material | Copper Alloy |
| Insulation Material | Thermoplastic |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 1000V |
Submit your RFQ for 861400102YO2317LF and get a quote within 24 hours.
