Amphenol ICC (Commercial Products)
CONN D-SUB HD PLUG 26POS PNL MNT

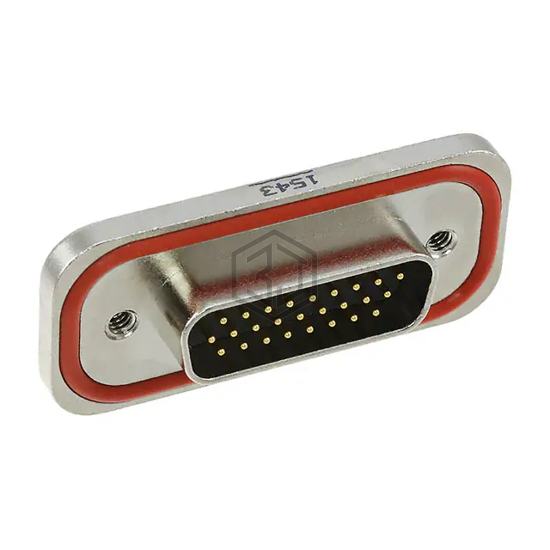

MDBRA26PEAN0 is a D-Sub Connectors manufactured by Amphenol ICC (Commercial Products). CONN D-SUB HD PLUG 26POS PNL MNT. Key specifications: mounting type Panel Mount, Through Hole, current rating (amps) 3A, termination Solder, ingress protection IP68 - Dust Tight, Waterproof.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Style | D-Sub, High Density |
| Connector Type | Plug, Male Pins |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Mounting Type | Panel Mount, Through Hole |
| Shell Size, Connector Layout | 2 (DA, A) High Density |
| Contact Type | Signal |
| Flange Feature | Housing/Shell (4-40) |
| Termination | Solder |
| Primary Material | - |
| Shell Material, Finish | Zinc, Nickel Plated |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Current Rating (Amps) | 3A |
| Backset Spacing | - |
| Features | Board Lock |
Submit your RFQ for MDBRA26PEAN0 and get a quote within 24 hours.
