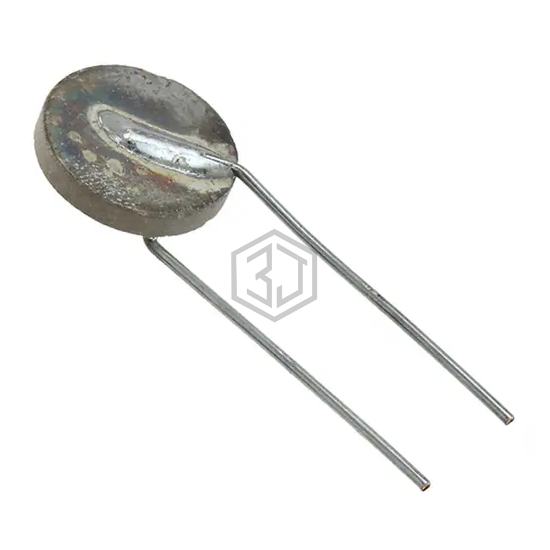

PTC RESET FUSE 240V 45MA RADIAL
YQS5878PTF is a PTC Resettable Fuses manufactured by Amphenol Thermometrics. PTC RESET FUSE 240V 45MA RADIAL. Key specifications: mounting type Through Hole, operating temperature 10°C ~ 55°C, package / case Radial, Disc, size / dimension 0.650" Dia x 0.272" T (16.50mm x 6.90mm).
In Stock: 937
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Ceramic |
| Voltage - Max | 240V |
| Current - Max | - |
| Current - Hold (Ih) (Max) | 45 mA |
| Current - Trip (It) | 120 mA |
| Time to Trip | - |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Resistance - 25°C (Typ) | 250 Ohms |
| Operating Temperature | 10°C ~ 55°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.650" Dia x 0.272" T (16.50mm x 6.90mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.374" (9.50mm) |
Submit your RFQ for YQS5878PTF and get a quote within 24 hours.
