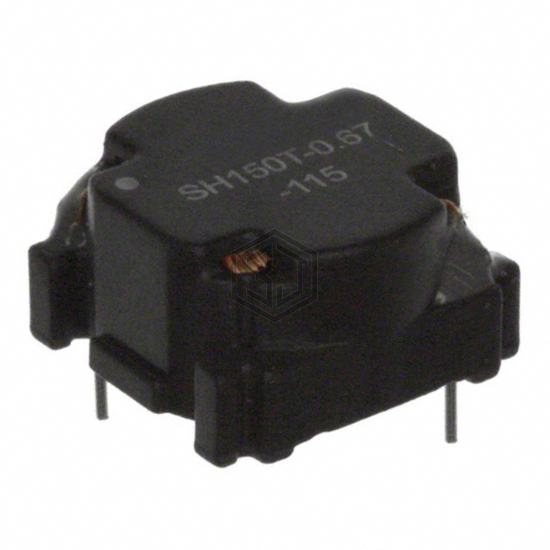

FIXED IND 115UH 670MA 400MOHM TH
SH150T-0.67-115 is a Fixed Inductors manufactured by Amgis, LLC. FIXED IND 115UH 670MA 400MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Horizontal - Corner Terminals, current rating (amps) 670 mA.
In Stock: 191
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 115 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 670 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 400mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Supplier Device Package | - |
| Size / Dimension | 0.551" L x 0.559" W (14.00mm x 14.20mm) |
| Height - Seated (Max) | 0.311" (7.90mm) |
Submit your RFQ for SH150T-0.67-115 and get a quote within 24 hours.
