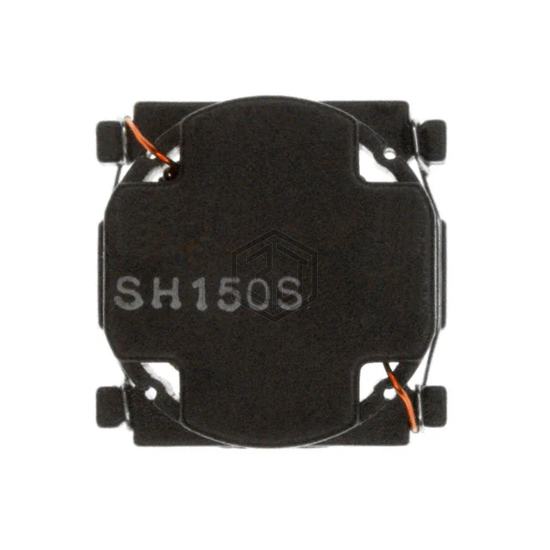

FIXED IND 77UH 1.54A 200MOHM SMD
SH150S-1.54-77 is a Fixed Inductors manufactured by Amgis, LLC. FIXED IND 77UH 1.54A 200MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.54 A.
In Stock: 217
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 77 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.54 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.614" L x 0.591" W (15.60mm x 15.00mm) |
| Height - Seated (Max) | 0.388" (9.85mm) |
Submit your RFQ for SH150S-1.54-77 and get a quote within 24 hours.
