Alpha & Omega Semiconductor Inc.

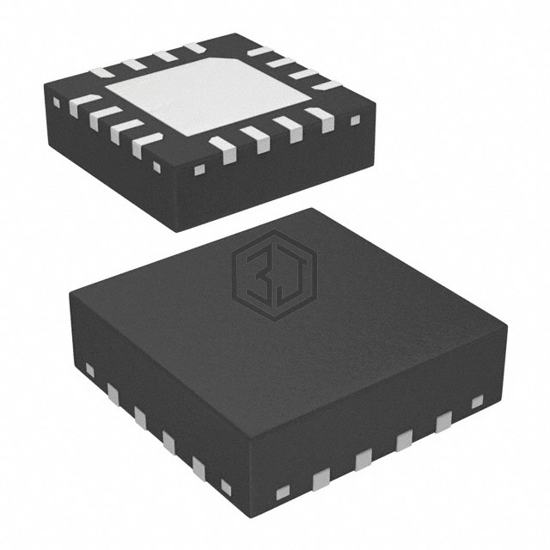

IC ANLG SWITCH DUAL SPDT 16QFN
AOZ6274QI is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Alpha & Omega Semiconductor Inc.. IC ANLG SWITCH DUAL SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN Exposed Pad, number of circuits 2.
In Stock: 5,758
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 400mOhm |
| Channel-to-Channel Matching (ΔRon) | 30mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 60ns, 40ns |
| -3db Bandwidth | 55MHz |
| Charge Injection | 22pC |
| Channel Capacitance (CS(off), CD(off)) | 16pF |
| Current - Leakage (IS(off)) (Max) | 50nA |
| Crosstalk | -70dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
AOZ6274QI is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AOZ6274QI#A | Alpha & Omega Semiconductor Inc. | IC USB 2.0 SWITCH 16QFN | 100% | View |
| AOZ6238QT | Alpha & Omega Semiconductor Inc. | IC ANLG SWITCH DUAL SPDT 10QFN | 97% | View |
| LMS4684ITLX/NOPB | Texas Instruments | IC SWITCH DUAL SPDT 12USMD | 74% | View |
| MAX4852ETE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 16TQFN | 65% | View |
| CD74HCT4067QM96Q1 | Texas Instruments | IC MUX/DMUX 16CH 24SOIC | 56% | View |
| D24067IM96G4Q1 | Texas Instruments | IC MUX/DEMUX 1:16 24SOIC | 56% | View |
