Allied Components International

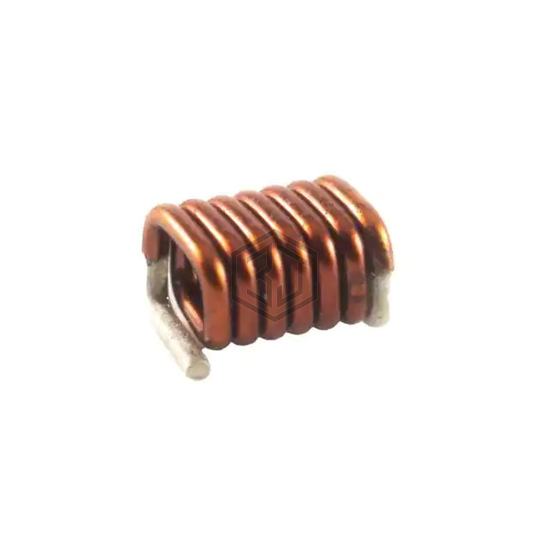

17nH 5% Square Air Coil
SQAC0807-17NJ-RC is a Fixed Inductors manufactured by Allied Components International. 17nH 5% Square Air Coil. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 2.7 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Air |
| Inductance | 17 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 9mOhm Max |
| Q @ Freq | 100 @ 400MHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 400 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.090" L x 0.072" W (2.29mm x 1.83mm) |
| Height - Seated (Max) | 0.070" (1.78mm) |
Submit your RFQ for SQAC0807-17NJ-RC and get a quote within 24 hours.
