Allied Components International

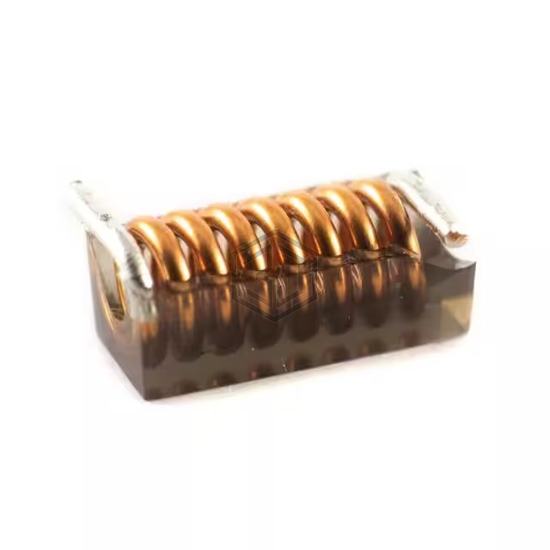

35.5nH 5% SMD Air Core Inductor
SMAC30-9J-RC is a Fixed Inductors manufactured by Allied Components International. 35.5nH 5% SMD Air Core Inductor. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 4 A.
In Stock: 45
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Air |
| Inductance | 35.5 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 4 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.8mOhm Max |
| Q @ Freq | 112 @ 150MHz |
| Frequency - Self Resonant | 1.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.270" L x 0.120" W (6.86mm x 3.05mm) |
| Height - Seated (Max) | 0.125" (3.18mm) |
Submit your RFQ for SMAC30-9J-RC and get a quote within 24 hours.
