Allied Components International

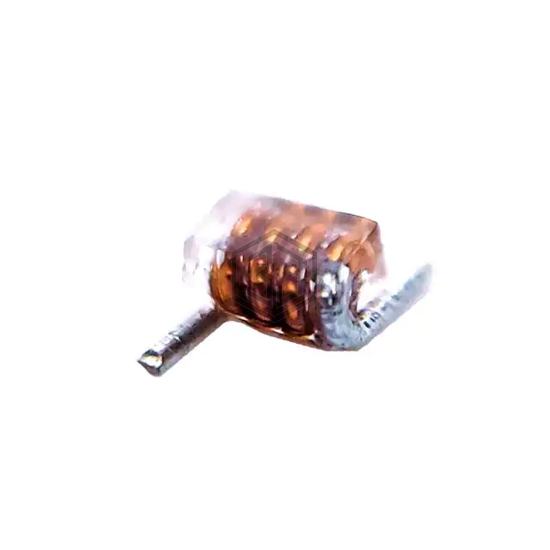

3.85nH 2% SMD Air Core Inductor
SMAC10-4G-RC is a Fixed Inductors manufactured by Allied Components International. 3.85nH 2% SMD Air Core Inductor. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.6 A.
In Stock: 37
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | Air |
| Inductance | 3.85 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 1.6 A |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 6mOhm Max |
| Q @ Freq | 100 @ 800MHz |
| Frequency - Self Resonant | 7.5GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 800 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.087" L x 0.056" W (2.20mm x 1.42mm) |
| Height - Seated (Max) | 0.060" (1.52mm) |
Submit your RFQ for SMAC10-4G-RC and get a quote within 24 hours.
