Allied Components International

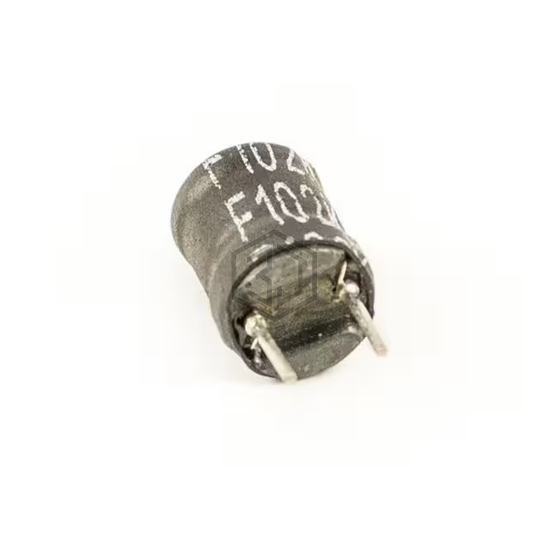

56uH +/-10% Radial Bobbin Ind.
RB0810-560K-RC is a Fixed Inductors manufactured by Allied Components International. 56uH +/-10% Radial Bobbin Ind.. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case Radial, Vertical Cylinder, current rating (amps) 2.7 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 56 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.7 A |
| Current - Saturation (Isat) | 1.8A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 8.5MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.374" Dia (9.50mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
Submit your RFQ for RB0810-560K-RC and get a quote within 24 hours.
