Allied Components International
.15uH 20% Shielded High Current

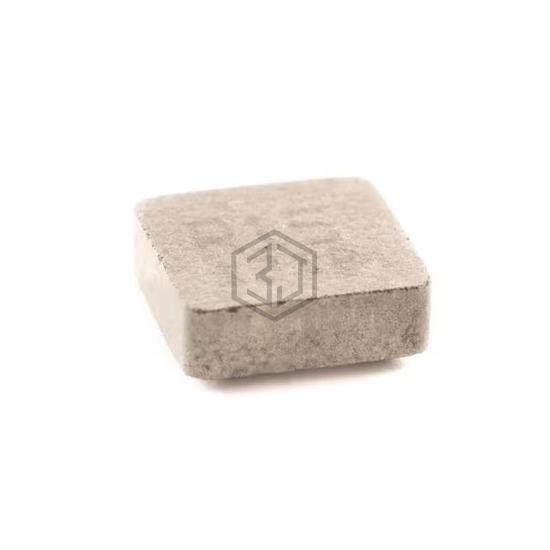

PCXA502-R15M is a Fixed Inductors manufactured by Allied Components International. .15uH 20% Shielded High Current. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 18 A.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 150 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | 27A |
| Shielding | Shielded |
| DC Resistance (DCR) | 4.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.217" L x 0.209" W (5.50mm x 5.30mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
