Allied Components International

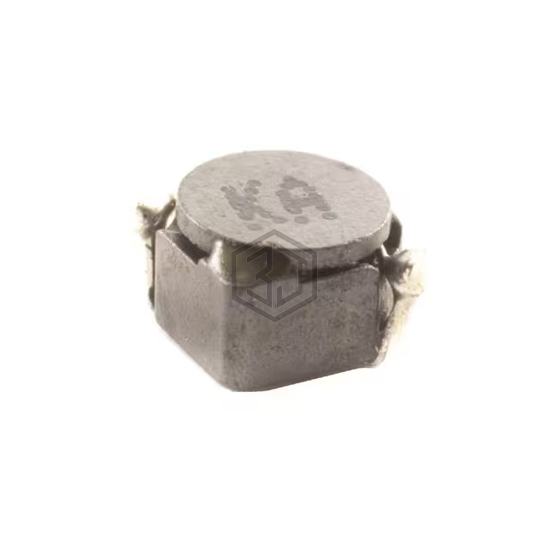

4.7uH +/-20% Power Chip Inductor
PCSLR2D18-4R7M-RC is a Fixed Inductors manufactured by Allied Components International. 4.7uH +/-20% Power Chip Inductor. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, package / case 1212 (3030 Metric), current rating (amps) 1.65 A.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.65 A |
| Current - Saturation (Isat) | 630mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 78mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -30°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1212 (3030 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.126" L x 0.126" W (3.20mm x 3.20mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
Submit your RFQ for PCSLR2D18-4R7M-RC and get a quote within 24 hours.
