Allied Components International

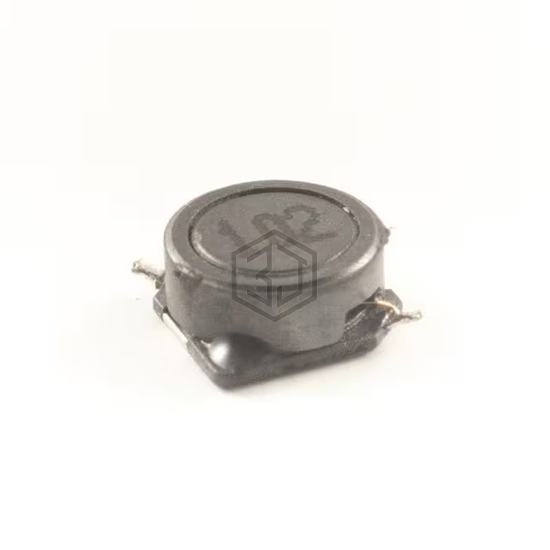

68uH +/-20% SMD Power Chip Ind
PCSLF0732-680M-RC is a Fixed Inductors manufactured by Allied Components International. 68uH +/-20% SMD Power Chip Ind. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case Nonstandard, Corner Terminals, current rating (amps) 590 mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 590 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 310mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard, Corner Terminals |
| Supplier Device Package | 2828 |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
Submit your RFQ for PCSLF0732-680M-RC and get a quote within 24 hours.
